Product Overview:

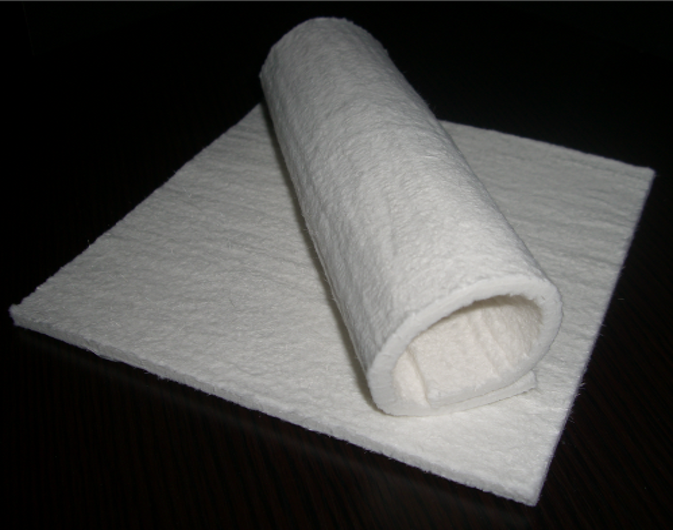

SNTS650 series aerogel felt is a flexible and efficient thermal insulation felt,This material is a combination of nano aerogel and inorganic fiber, which is specially used for thermal insulation of various medium and high temperature industrial pipelines, tanks and other equipment with circular surfaces. It is the ideal choice for customers to pursue better insulation effect and lower energy consumption.
Product performance:
| Product Form | Coiled material |
| Thickness | 3mm、5mm、6mm、10mm |
| Width of cloth | 1500mm |
| Thermal conductivity (25 ℃) | 0.017--0.023 W/（m·K） |
| Maximum applicable temperature | 650℃ |
| Density | 180±20% kg/m³ |
| Hydrophobicity rate | ≥99 % |
| Chloride ion content | ≤0.001 % |
Product characteristics:
▶Excellent thermal insulation
Achieve the same thermal insulation effect, and the thickness is only a fraction of that of traditional materials.
▶Hydrophobicity and fire resistance
The material is hydrophobic as a whole and has class a fire resistance.
▶Convenient construction
Light weight, easy to cut to adapt to various shapes of pipes and equipment insulation, and less time and labor required for installation.
▶service life
It is composed of pure inorganic materials, environmentally safe, strongly acid and alkali resistant, and has a service life of up to 20 years.
▶Save transportation cost
Less wrapping volume and lighter weight can greatly reduce the transportation cost of insulation materials.
Field of application:
▶Petroleum production steam pipeline, prefabricated insulation pipe
▶Pipelines of thermal power plant, petrochemical plant and chemical plant
▶Insulation of storage tank, container and other equipment
▶Various high and low temperature furnace equipment
▶Body insulation of high-speed train, automobile, subway, etc
▶Building insulation
